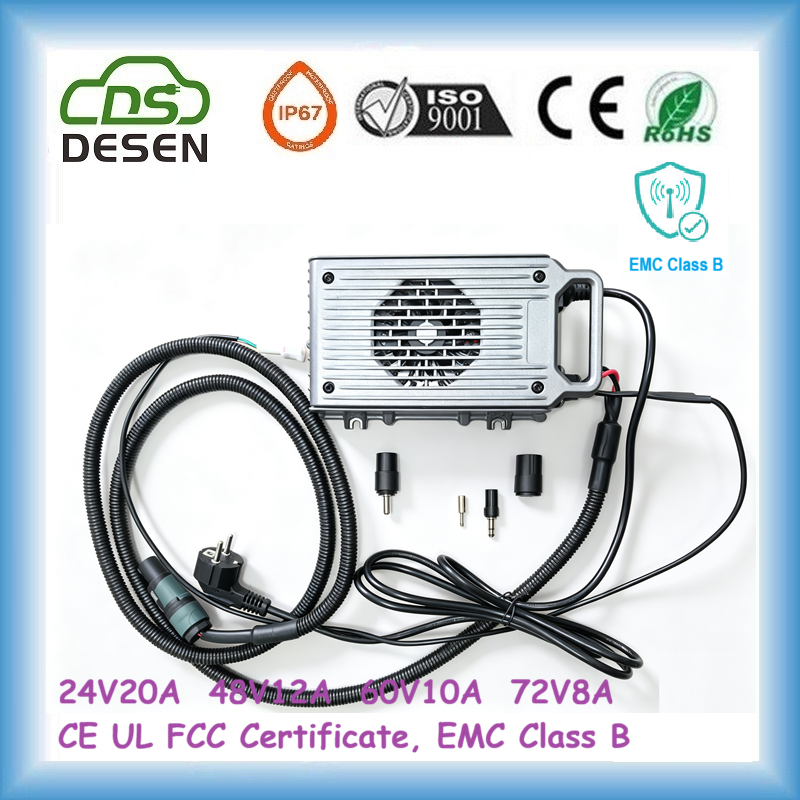

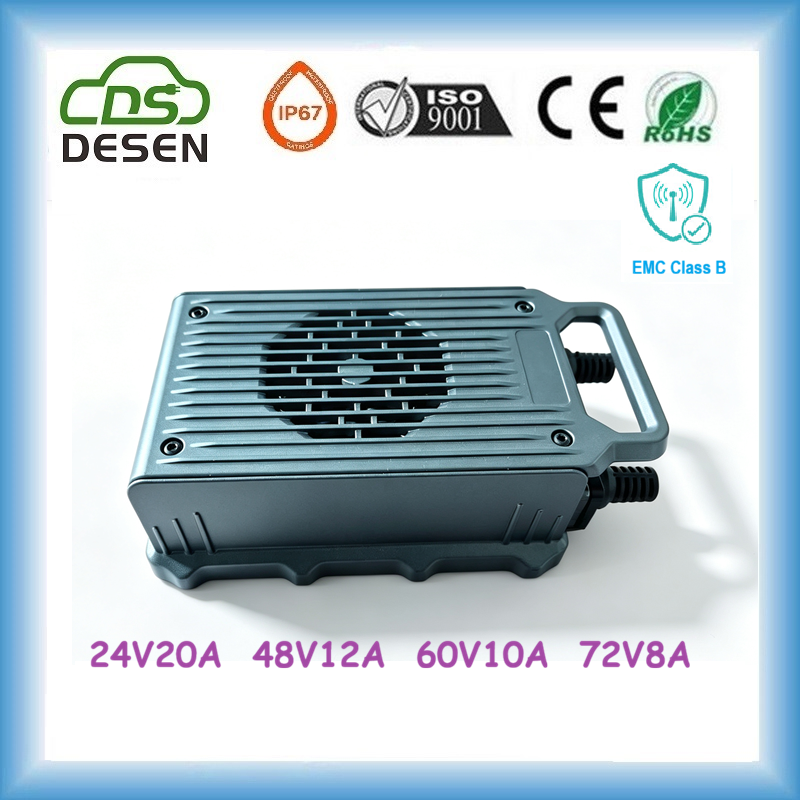

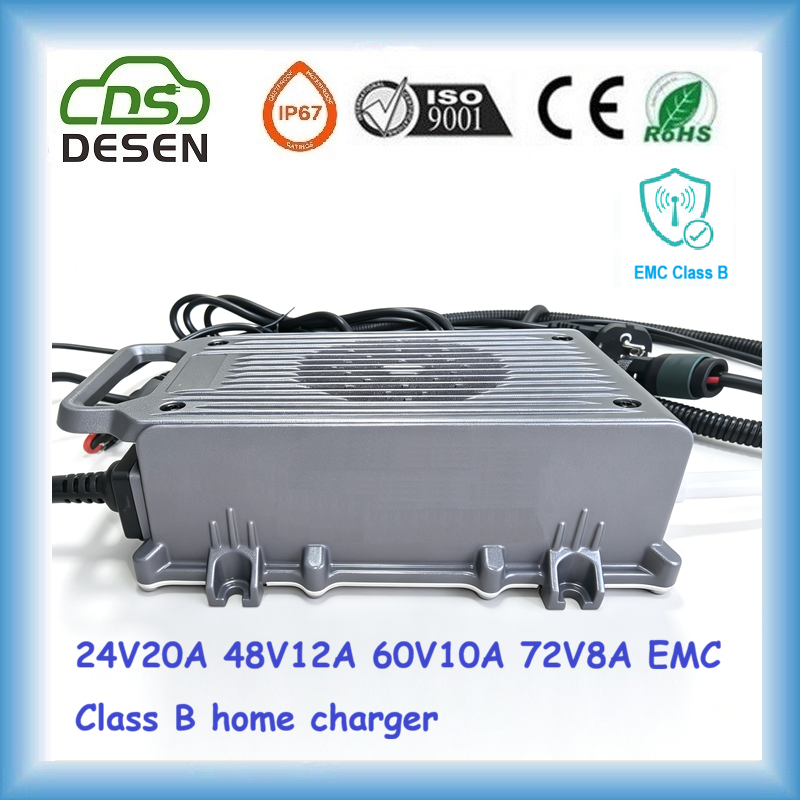

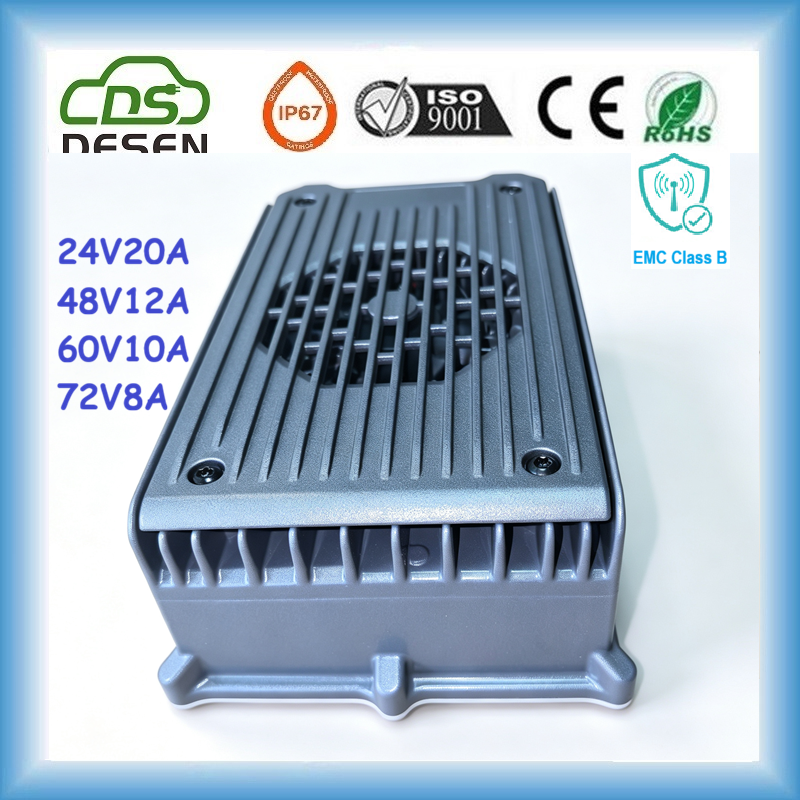

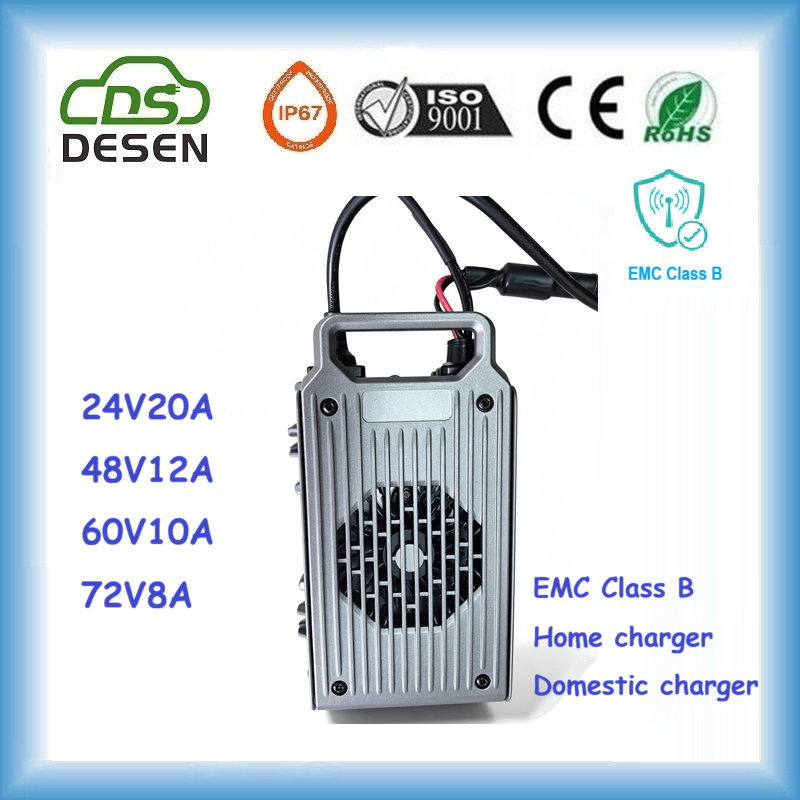

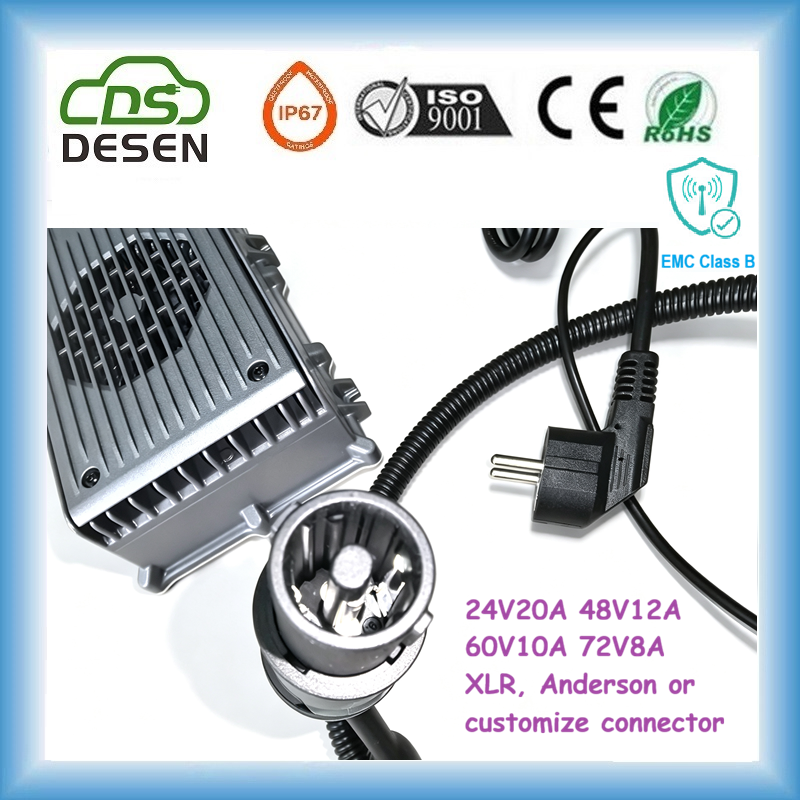

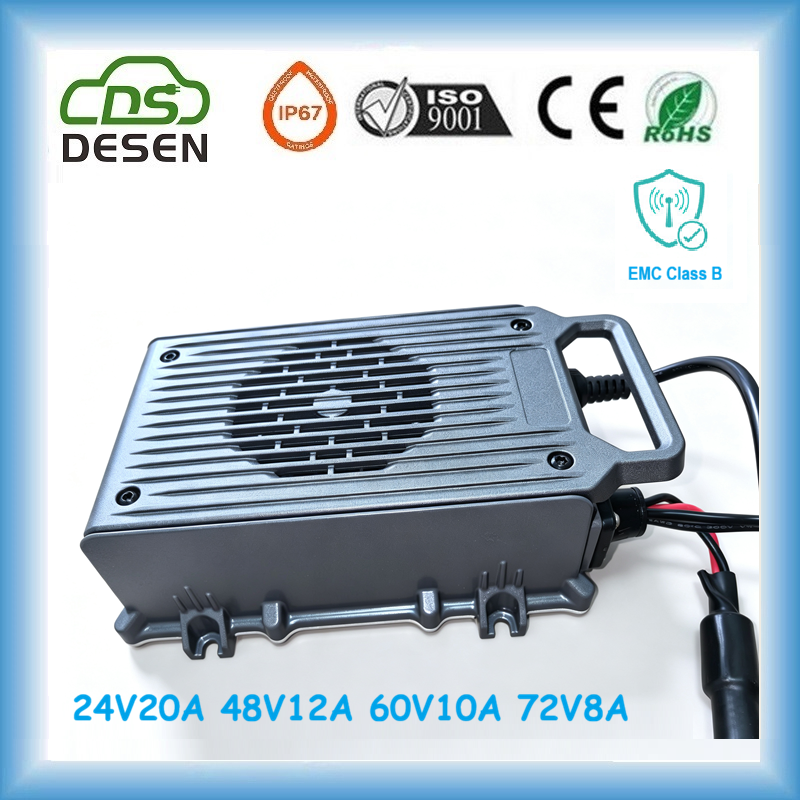

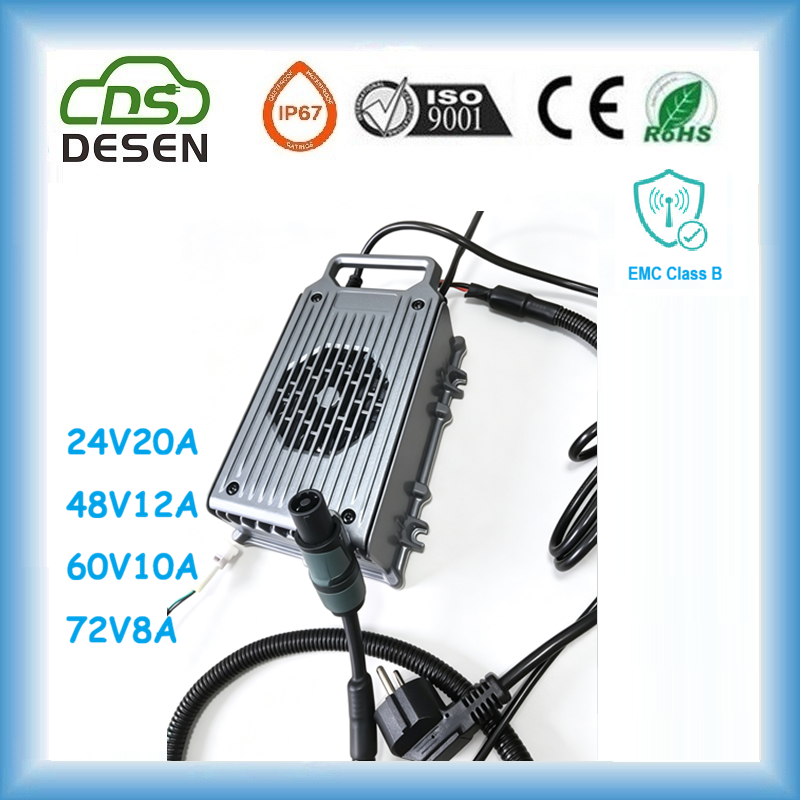

DESEN 600W 72V8A battery charger maintainer

600W IP67 Sealed Battery Charger Specification

    DESEN ADS Series of high frequency PWM chargers have a compact and sealed structure design, they are suitable for flooded lead acid batteries, sealed lead acid batteries and Lithium ion batteries. They are used to cycle charge or floating charge batteries in electric cars, sightseeing vehicles, patrol vehicles, fork lifts, communication, electric power, boats, Lawn-Mowers, Agriculture Equipment, etc.

     Active PFC and LLC new technology guarantee a good Power Factor and a very high efficiency. The reliable hardware protections and Impeccable charging strategies ensure a safe charging process.

KEY FEATURES

28.8V@20A, 29.4@20A, 57.6V@12A, 58.2V@12A, 58.8V@ 12A, 72V@10A, 72V@10A, 86.4@8A, 88.2@8A

KEY FEATURES

• AC input voltage range:  90~264Vac; 50-60Hz

• AC input rated current:  <5A @ 100~230VAC
• Power Factor  > 0.99
• Efficiency:  94% typical
• Noise level < 45dB
• Protection Level:  IP67
• CAN bus/RS485 communication as option; Extend three colored LEDs as option
• Charging Interlock can prevent unsafe situations at vehicle movement during charging as option
• Meet RoHs, CE, UL Certificate, EMC Class B
• Charging protection below 0 ⁰C for Lithium (LI) Chargers
• Temperature compensation of Lead Acid (LA) chargers
• ·Integrated die casting structure, pouring sealed inside the charger, good performance in vibration, active heating dissipation, high reliability and long life time, it can be adopted in hostile environment.
