Electric Vehicle Battery Charger

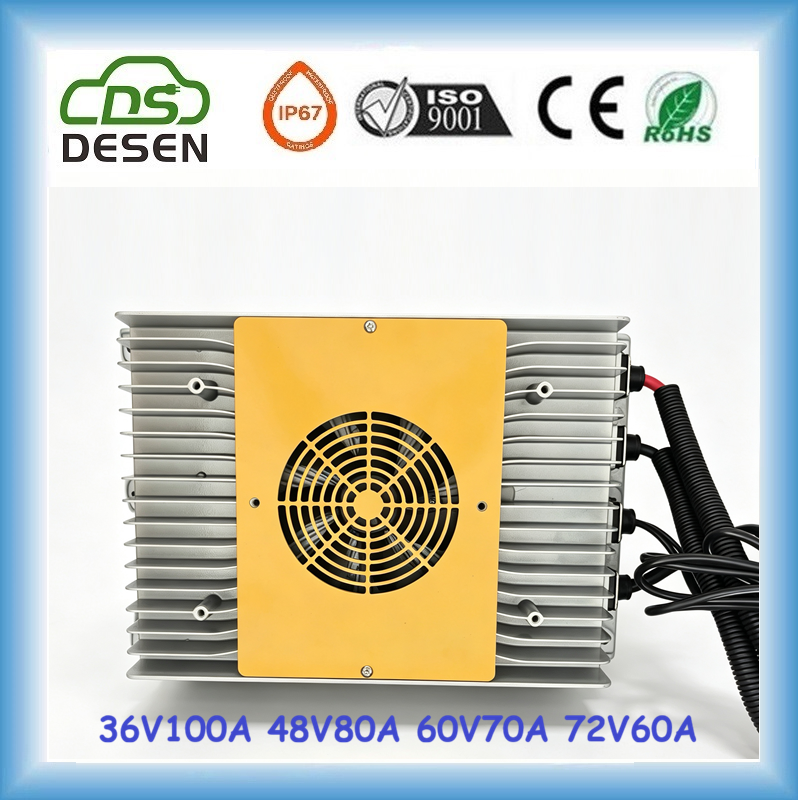

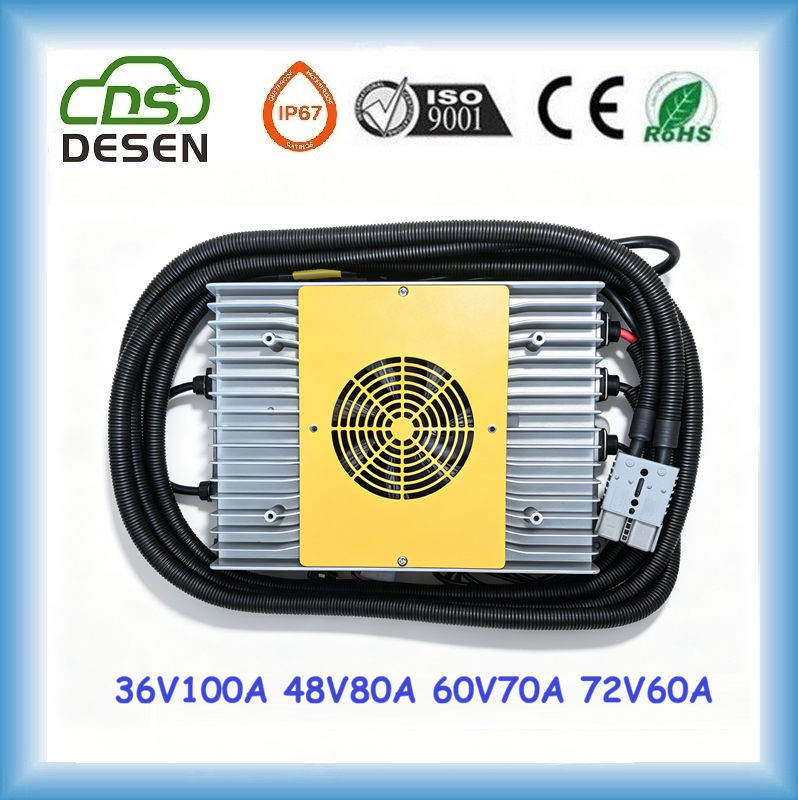

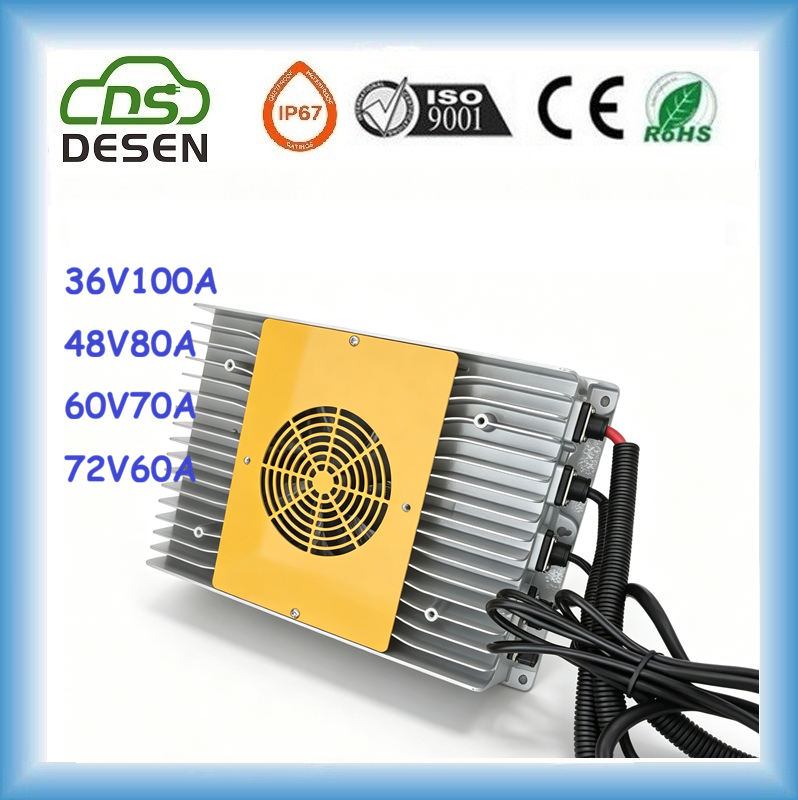

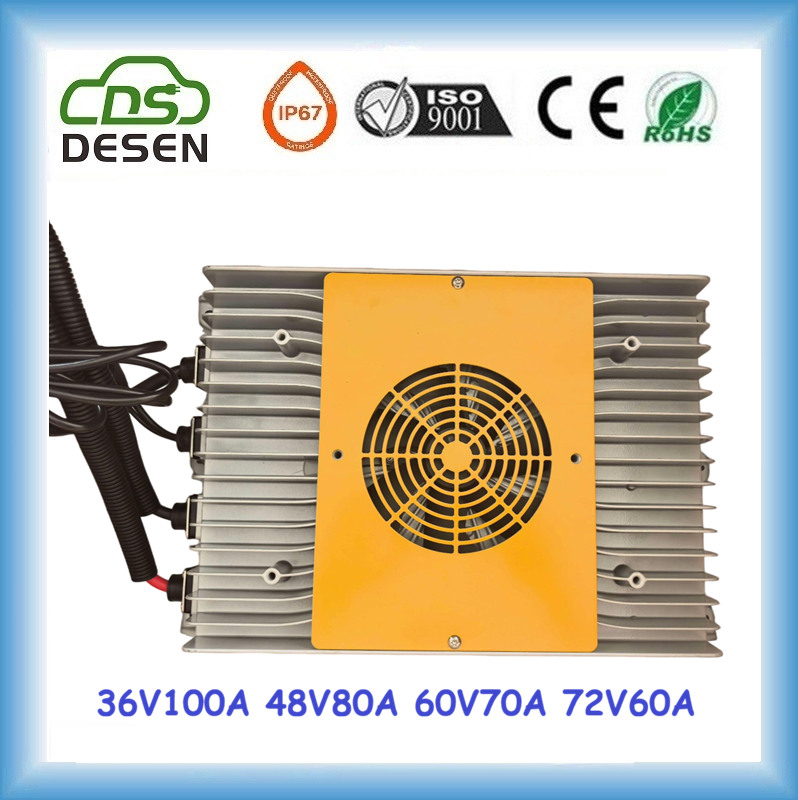

DESEN 5000W 48V80A battery charger maintainer

DESEN 5000W 48V80A battery charger maintainer

Brand: ADSTech
Efficiency: 90% typical
Protection Level: IP67
Noise level < 45dB
Product description: DESEN 48V80A IP67 battery charger maintainer compatible with LiFePO4 & lead acid batteries. Widely range for EU & North America, suitable for forklift, e-bikes, scooters, golf buggy/carts, solar stora
INQUIRY

5000W Series Bluetooth Remote Control Sealed Battery Charger Specification

DESEN ADS Series of high frequency PWM chargers have a compact and sealed structure design, they are suitable for flooded lead acid batteries, sealed lead acid batteries and Lithium ion batteries. They are used to cycle charge or floating charge batteries in electric cars, sightseeing vehicles, patrol vehicles, fork lifts, communication, electric power, boats, Lawn-Mowers, Agriculture Equipment, etc.

Active PFC and LLC new technology guarantee a good Power Factor and a very high efficiency. The reliable hardware protections and Impeccable charging strategies ensure a safe charging process.

Embedded Bluetooth, can change charging curve and parameter via APP flexibly

MODEL LIST

Model Name	Nominal Output Voltage(V)	Max Charging Current (A)	Battery Type
ADS5000-36100XXX	36	100	> SLA : Sealed Lead-Acid ( AGM or GEL) > FLA: Flooded Lead-Acid ( Wet) > LCO: Lithium Cobalt Oxide(LiCoO2) - (3.60V nominal; range 3.0-4.2V/cell) > LMO: Lithium Manganese Oxide (LiMn2O4) - (3.70V nominal; range 3.0-4.2V/cell) > NMC: Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2) (3.60V, 3.70V nominal; range 3.0-4.2V/cell) > LFP: Lithium Iron Phosphate(LiFePO4)(3.20, 3.30V nominal range 2.5-3.65V/cell) > NCA: Lithium Nickel Cobalt Aluminum Oxide (LiNiCoAlO2)(3.60V nominal; range 3.0-4.2V/cell) > LTO: Lithium Titanate (Li2TiO3)(2.40V nominal; range 1.8-2.85V/cell)
ADS5000-4880XXX	48	80
ADS5000-6070XXX	60	70
ADS5000-7260XXX	72	60

XXX: Battery type (use SLA, FLA, LCO…indicate the model)

KEY FEATURES

AC input voltage range: Three Phases 260~457Vac(Line voltage); 45-65Hz

AC input rated current: <9A @ 380VAC

Power Factor> 0.95

Efficiency:90% typical

Noise level < 45dB

Protection Level: IP67

CAN bus with auxiliary 12Vdc supply, can extend three colored LEDs

Charging protection below 0 ⁰C for Lithium (LI) Chargers

Temperature compensation of Lead Acid (LA) chargers

Details Specification, please press EV Battery Charger to download Integrated die casting structure, pouring Sealed inside the charger, good performance in vibration, active heating dissipation, high reliability and long life time, it can be adopted in hostile environment.

Detail product specification view, please press EV Battery Charger download!

GENERAL

Dimension(mm)	419x281.5x100.5
N.W(kg)	13
G.W(kg)	14
Input	4 m2 AC cable with customized AC plug
Output	6 m2 with customized connector
Installation Type	Portable with Handle bar or On-board installation, FAN cover plate to protect FAN
Warranty (Year)	2
